Creating a Wall for Orchestration

Before starting to create your Wall for Orchestration you will need, accurate measurements of the distance between your canvases.

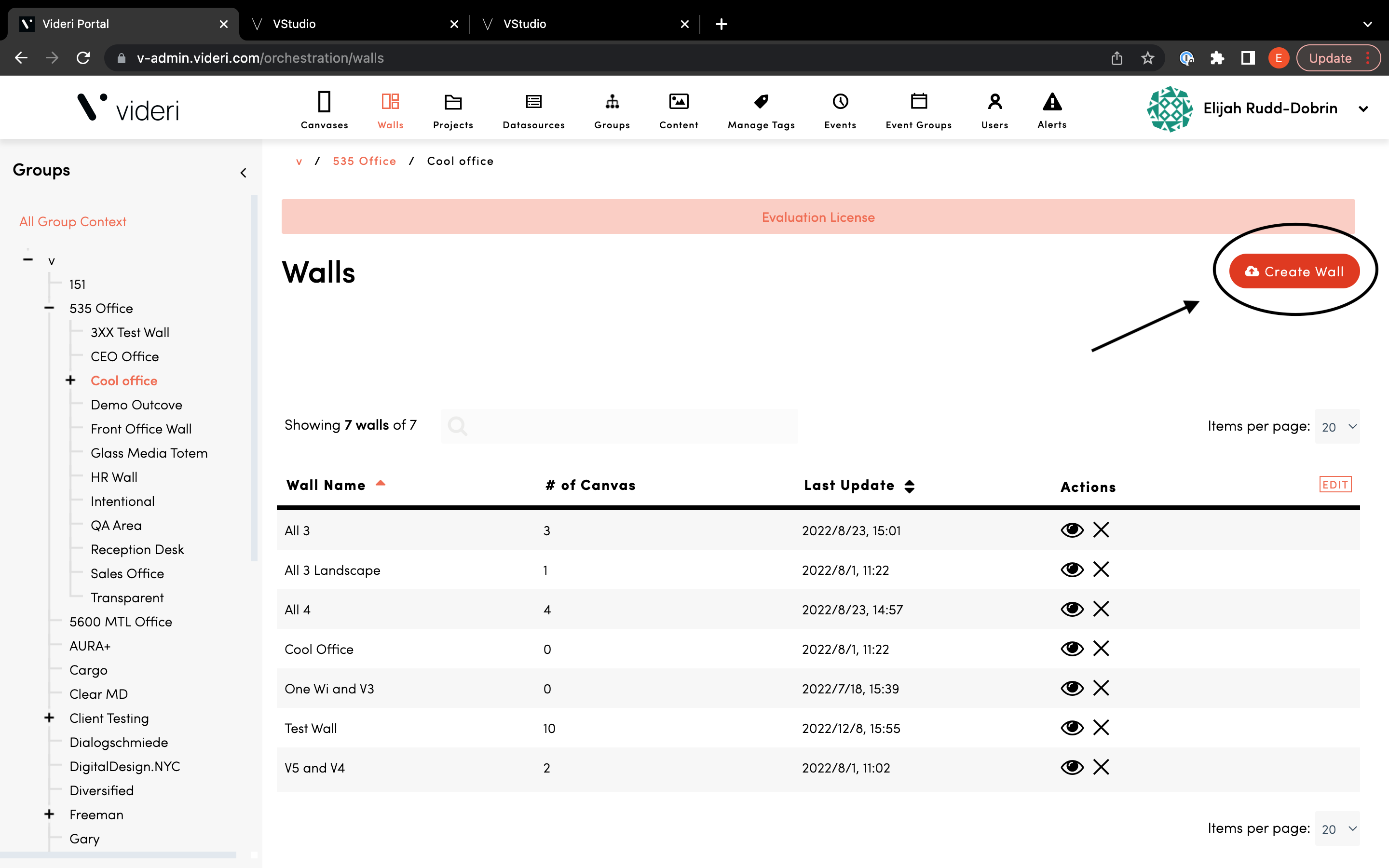

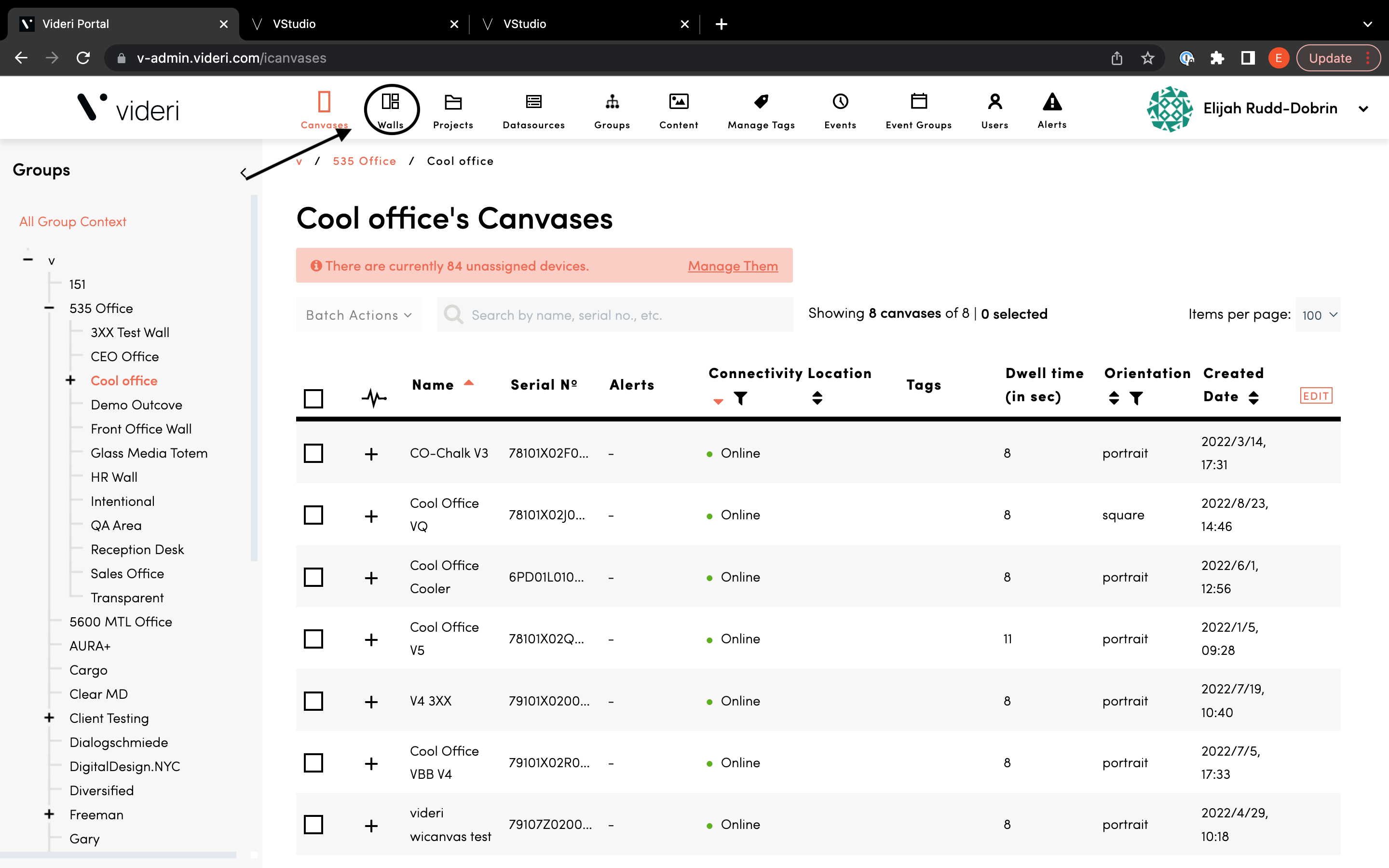

1. Locate and open the Walls tab.

2. Use the "Create Wall" button to create a new Wall.

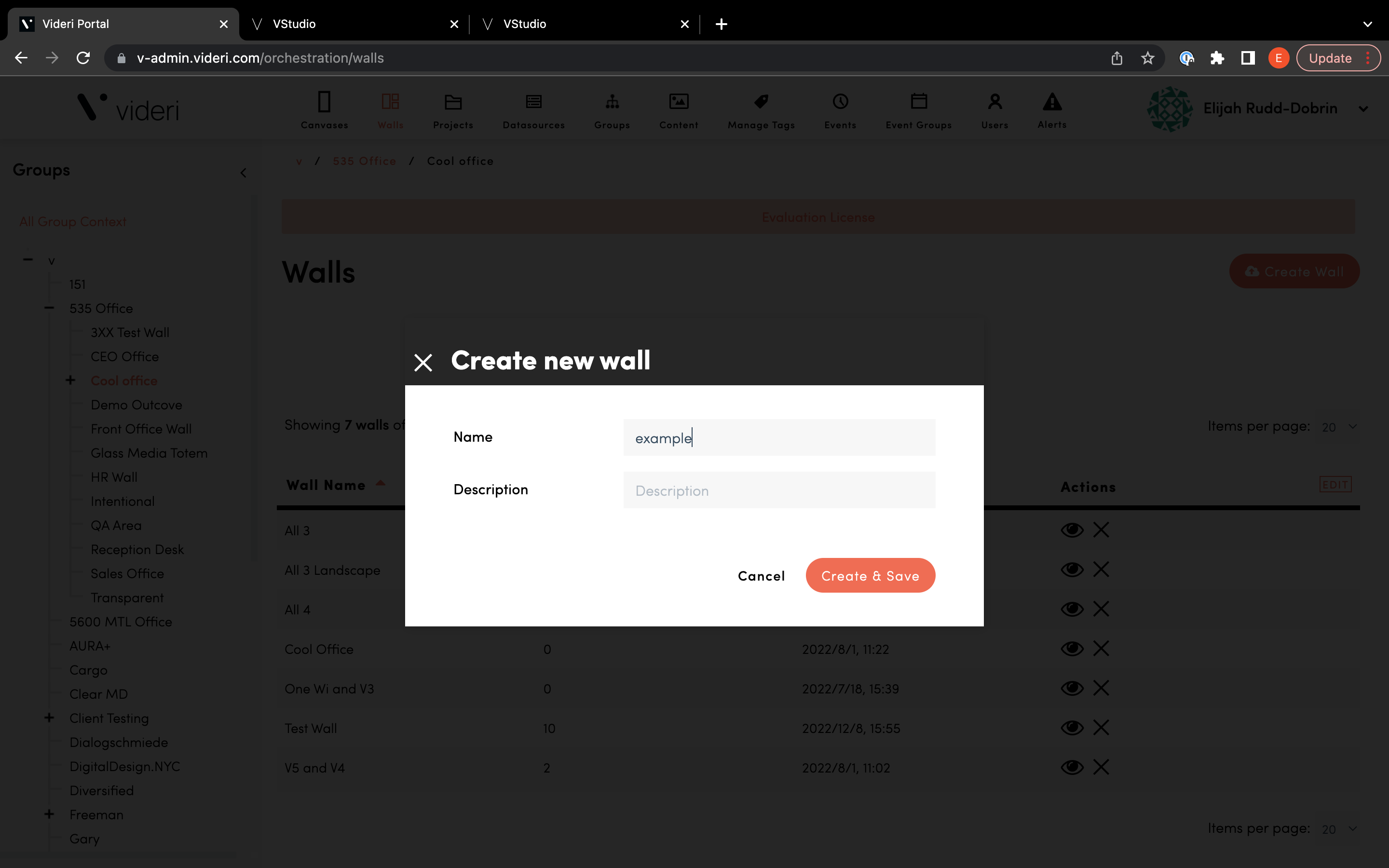

3. Name and save the new Wall.

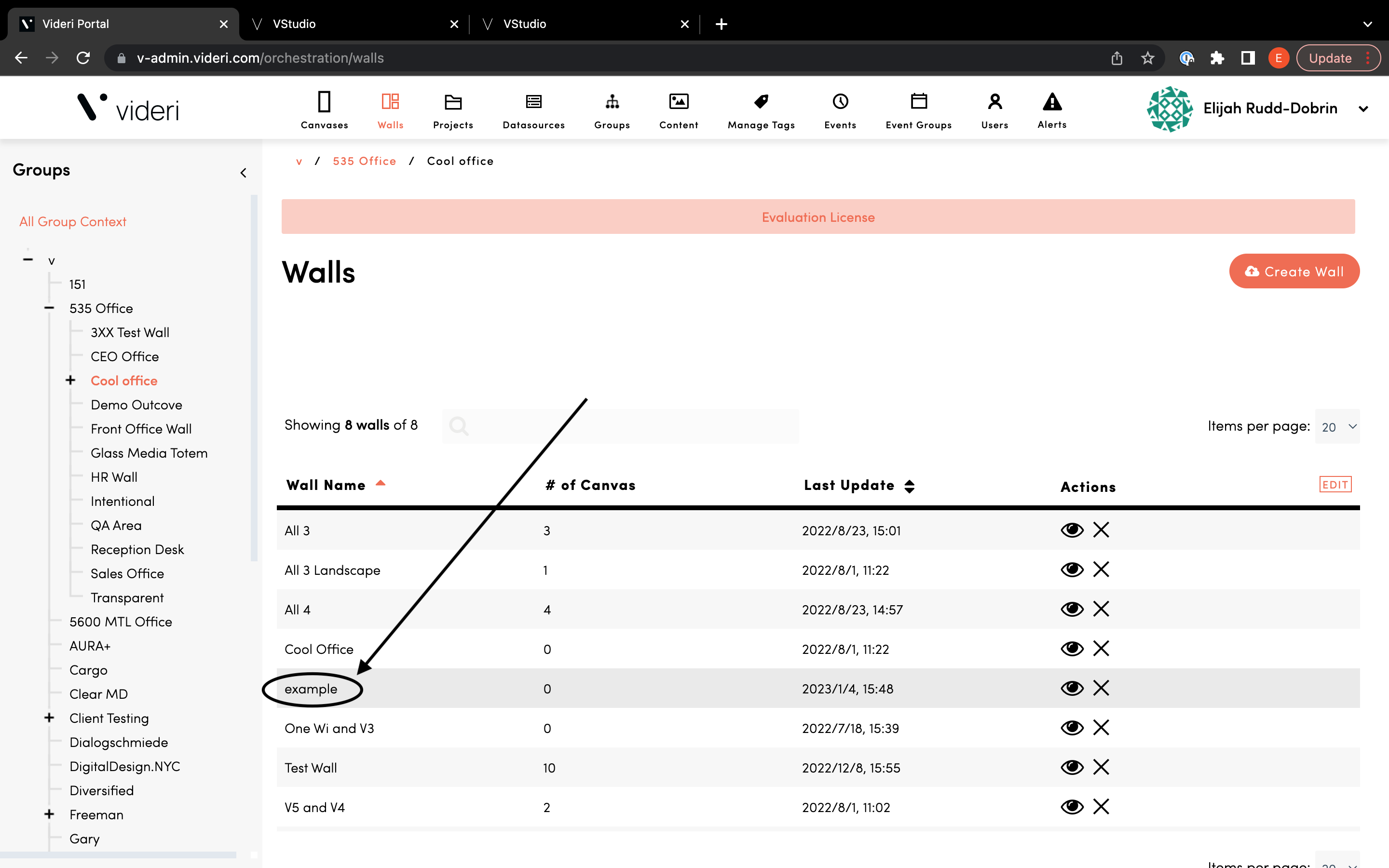

4. Open the new Wall by clicking on it.

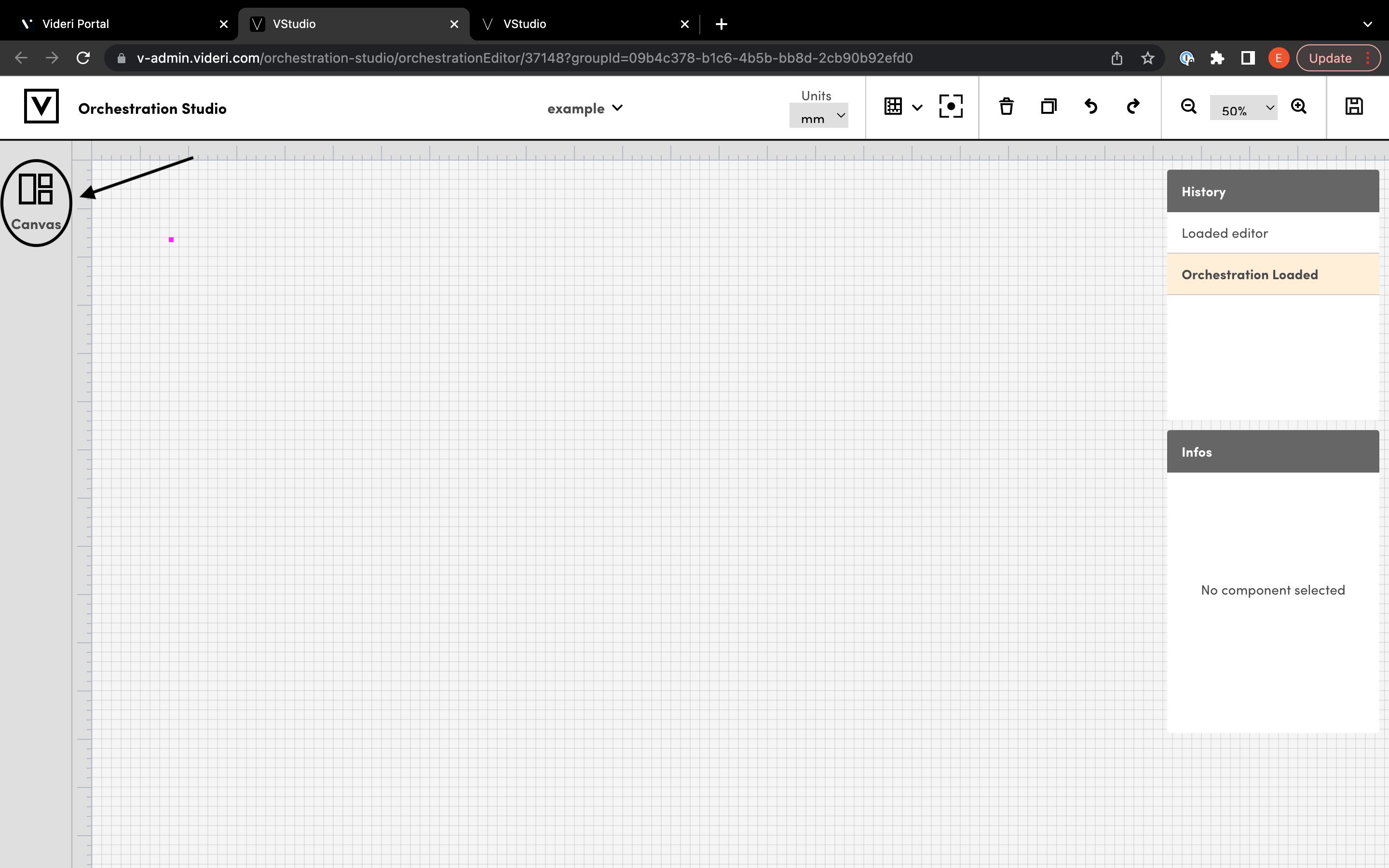

5. The page should open up to coordinate plane. On the left-hand side there is and icon above the word "Canvas" click on that.

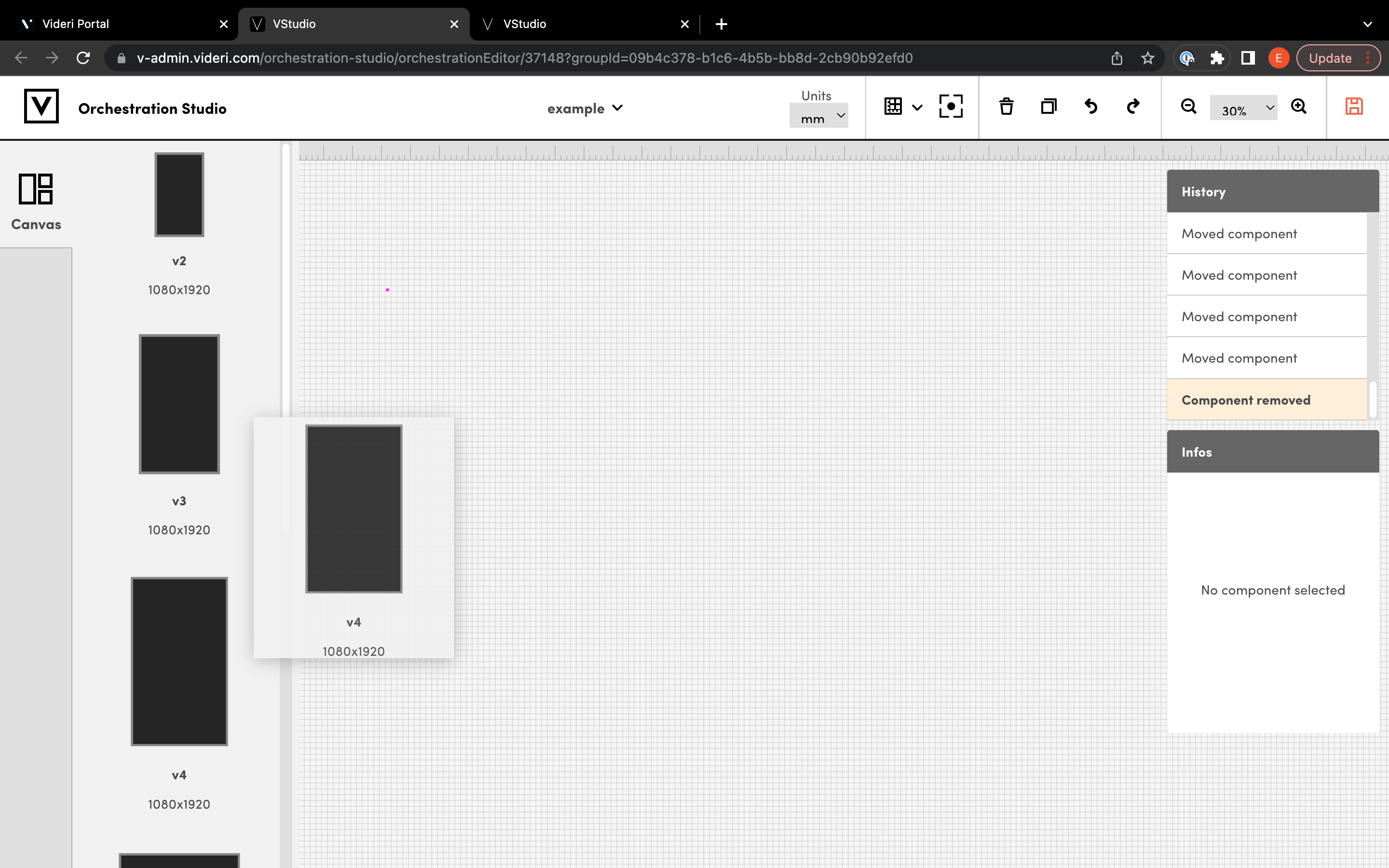

6. Select your Canvas, then drag and drop it on to the plane. Please ensure you select the correct model.

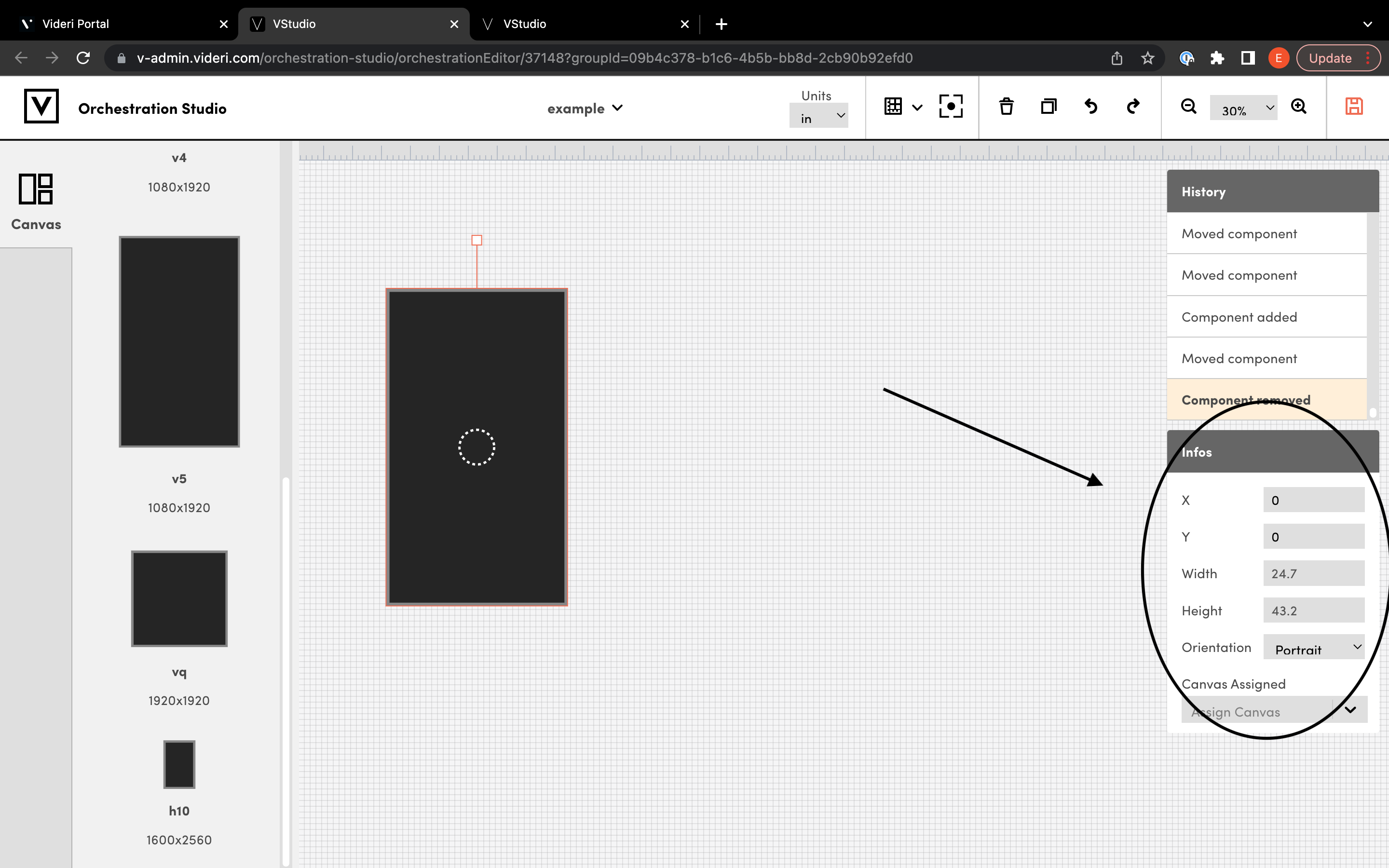

7. Under "Infos" set the canvases coordinates to 0,0. You will also notice the canvases width and height listed under "Infos". We are going to use those measurements to plot our wall.

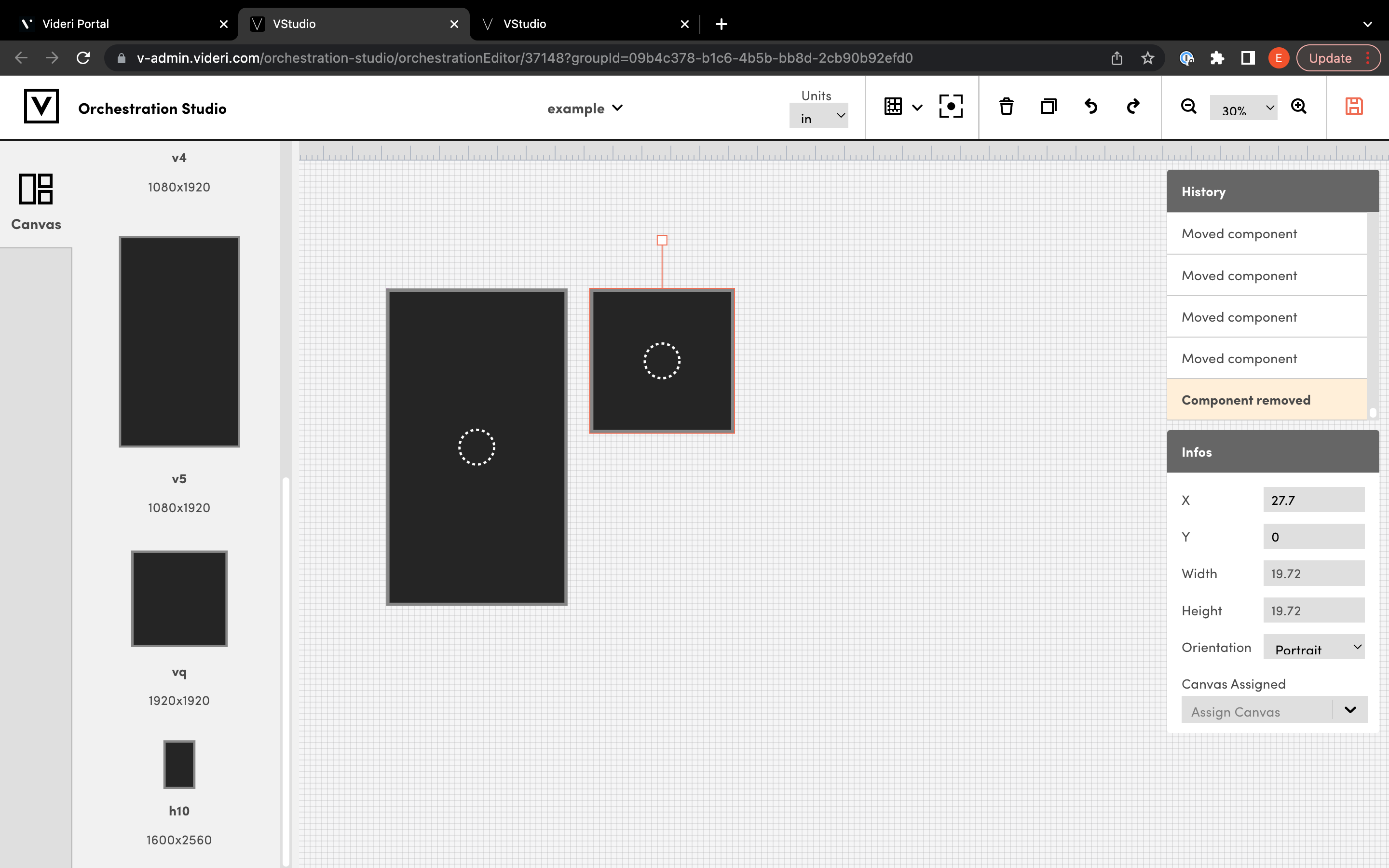

8. The width of the V5 canvas is 24.7in, our second canvas is 3in away. We are going to add the X coordinate 0in to the width 24.7in and then add the distance between the canvases 3in and get 27.7in, this will be our X coordinate for our second canvas. Formula: X + width + distance = X for new canvas.

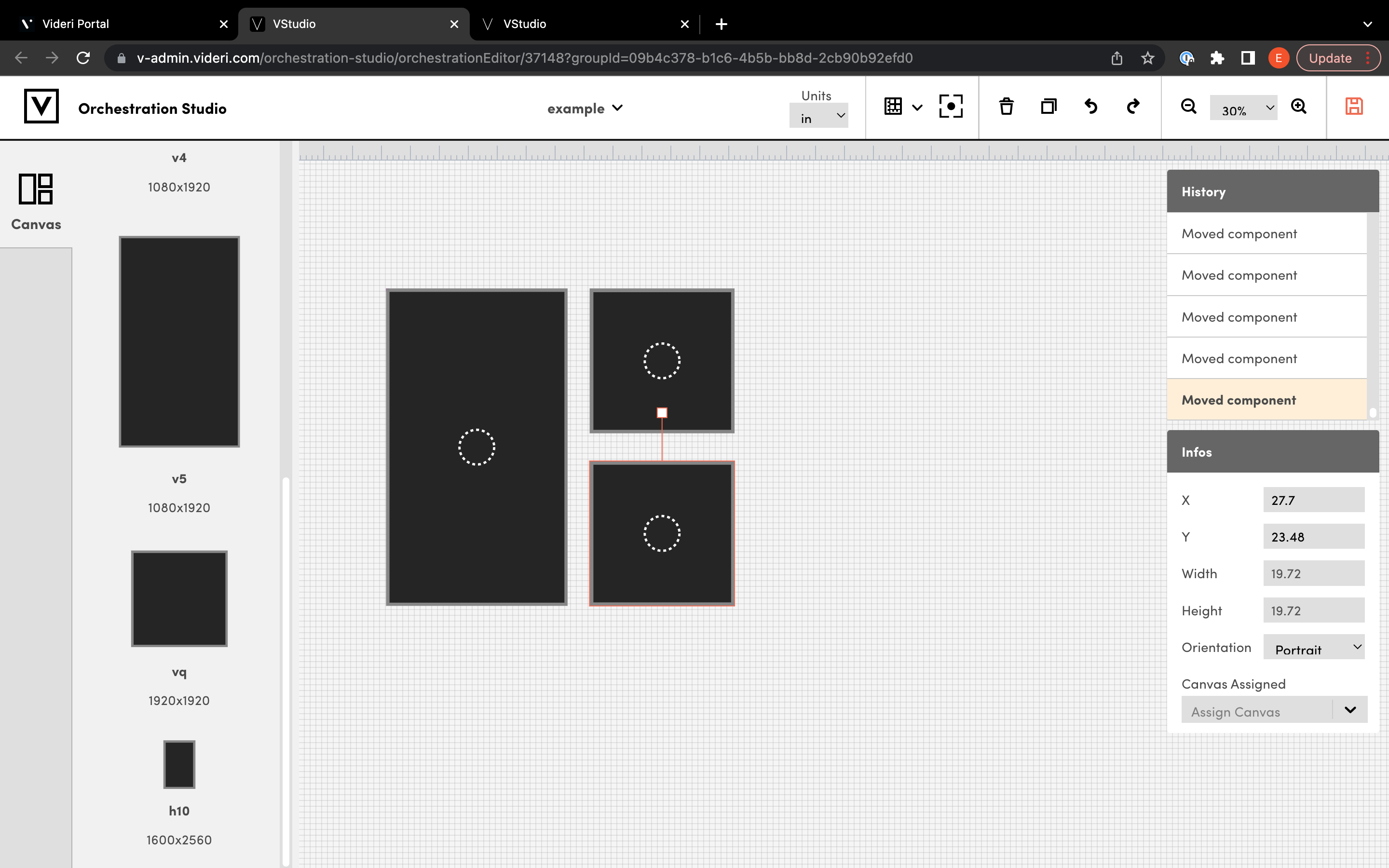

9. For canvases below the first canvas the formula is as follows. Y + height + distance = Y for new canvas.

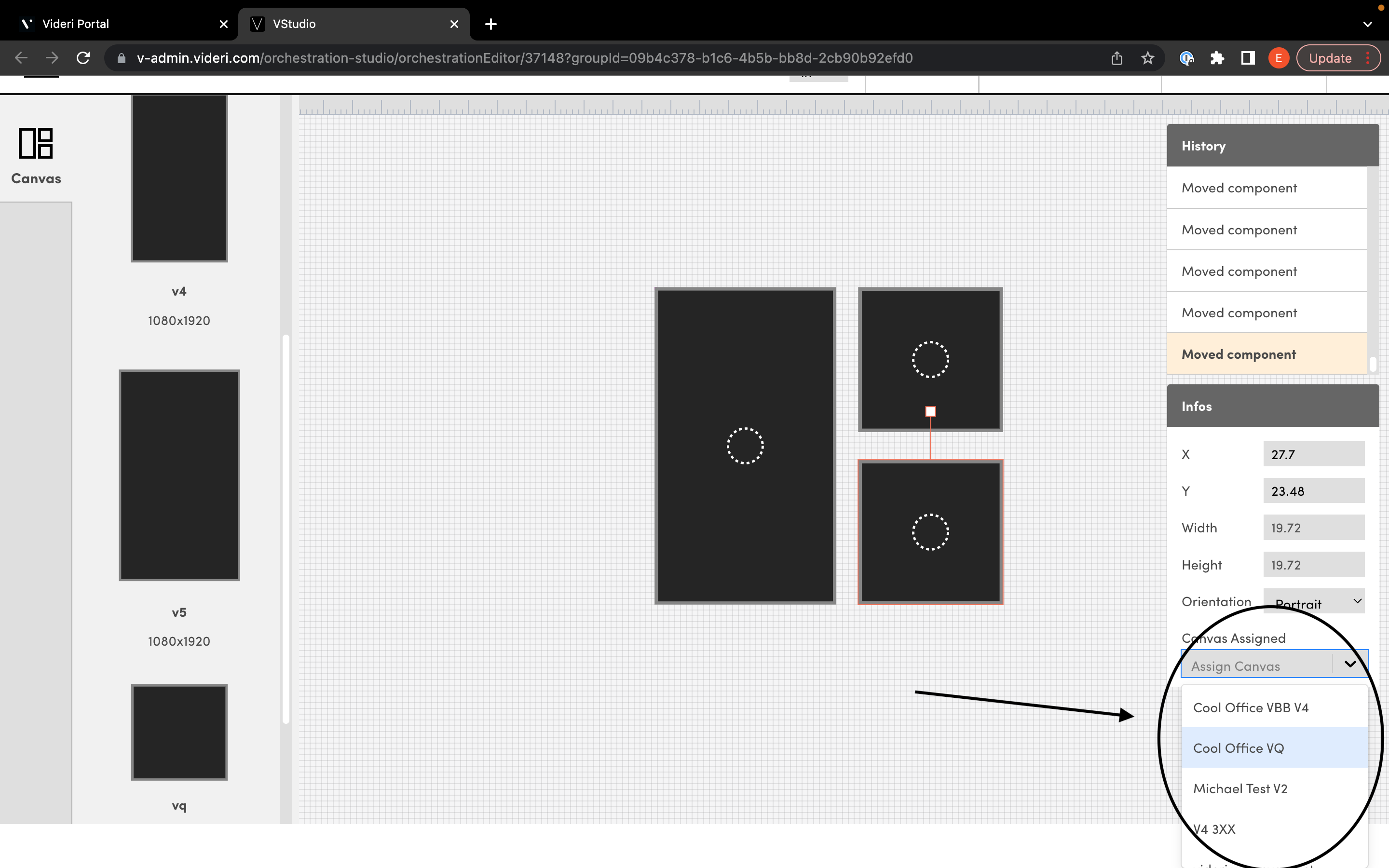

10. Assign your Canvases to the Wall layout. Please ensure the correct canvases are assigned to the correct model on the wall.

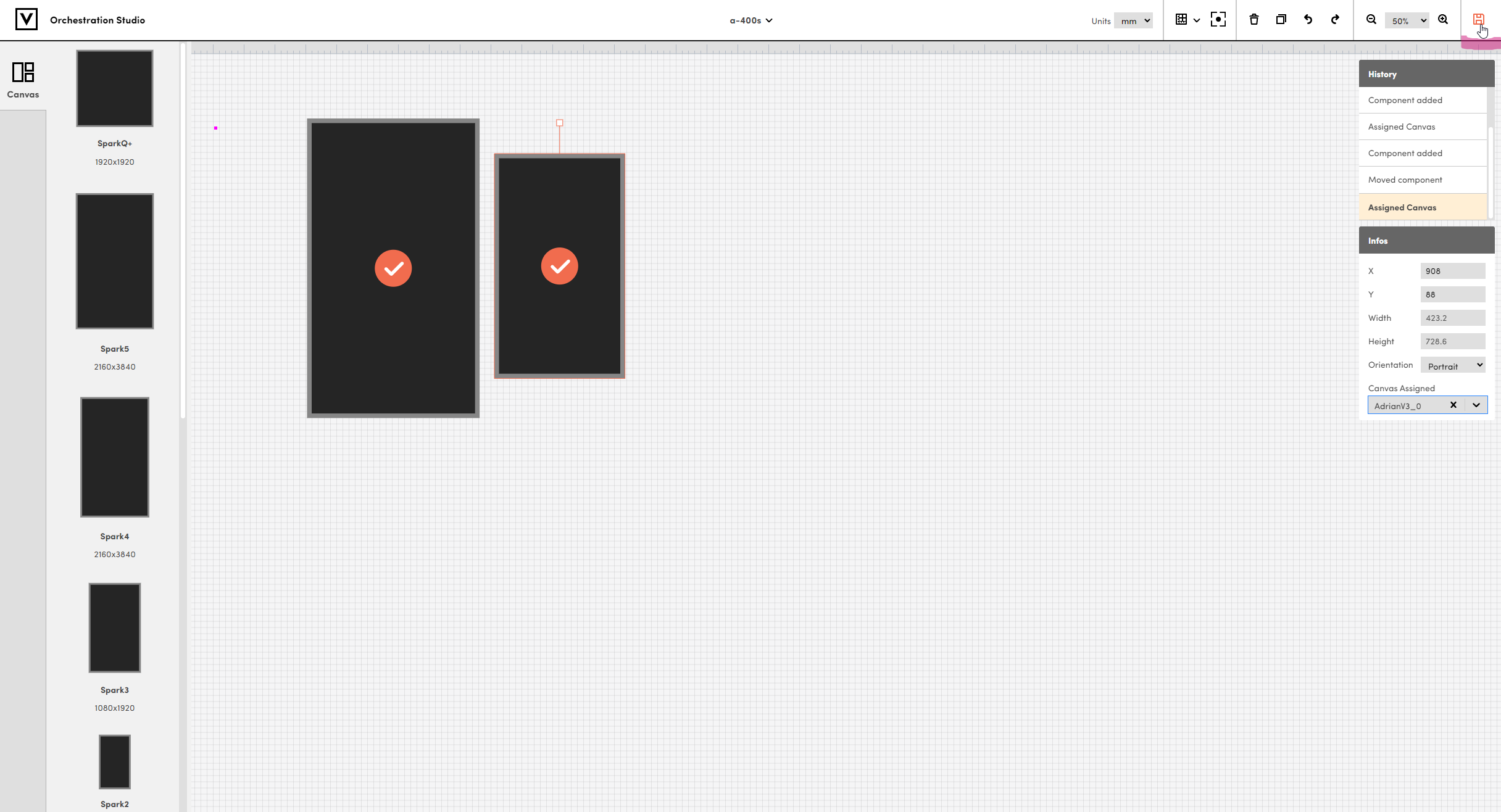

11. When ready click on Save in the Top Right corner to save the newly created orchestration (wall)
