Spark Series Canvas Specifications

For the full Canvas specifications document, download the PDF attached at the bottom of this article.

Spark Series
Endless possibilities to let digital content stand out.

Elegant and on the bleeding edge of hardware design, used alone or in patterns, Videri Digital
Canvases create experiences that bring digital content to life in places where traditional digital
doesn't fit, all with unmatched simplicity.

Videri’s latest release, Spark Series, is a 4th generation Canvas and the most innovative yet.
Enhanced clarity and vibrancy are supported by upgraded screen haze and reduced glare. IPS LCD
display panel technology provides the best color and viewing angles. WiFi6, Bluetooth 5.2, and 4G
enable easier, faster, and more stable connectivity while best-in-class processing capabilities with
4K UHD means content is rendered smoothly and apps are launched effortlessly.

• System on a Chip (Android™) lets you run corporate apps and services to push dynamic content.
• 5 unique shapes and sizes.
• Commercial grade 24/7.
• Low power consumption - up to 50% less power.
• Schedule brightness and set to 0 during off hours.
• ADA compliant, ESG friendly.

Install Effortlessly

The Spark Series' new common proprietary mounting
system makes installing Canvases as easy as hanging
a painting. The upgraded bezel provides enhanced
wireless connectivity and finishes the sleek design.

Wireless Orchestration.

Unique to Videri, create a wall of Canvases, and the
Videri platform automatically adjusts the spacing to
your layout. No switchers, splitters, or video editing
required

----------

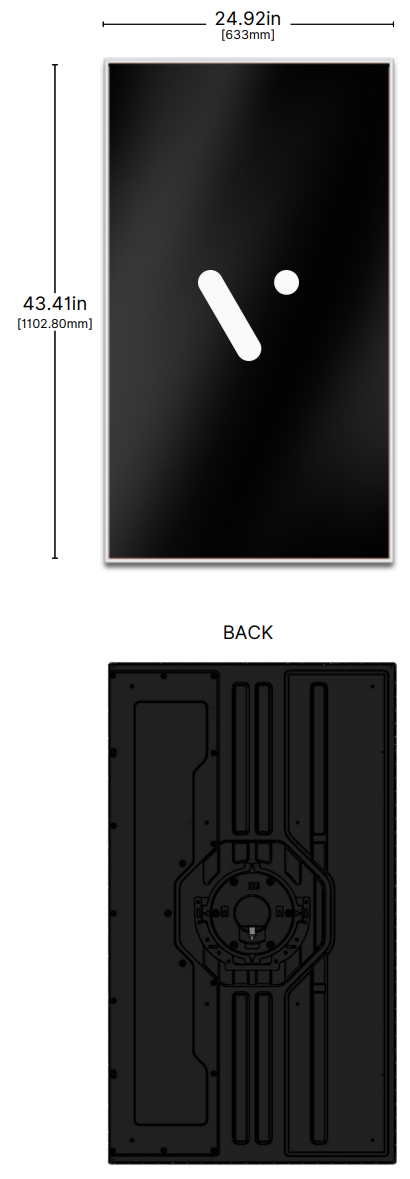

Spark5: 50"

The most imposing of the Spark Series at 50 inches, with 4K UHD, the Spark5 makes a
stand-out statement for any digital content.

DISPLAY Active Display Area Resolution Brightness PPI Dark Mode Surface Treatment Color Gamut Dimming Type Operation Time Portrait/Tilt Compatibility   1073.8 x 604mm 3840 x 2160 UHD 450 nits 91 0.56 nits 25% Haze 72% NTSC Remote only 24/7 Yes   TECHNOLOGY Processor Wi-Fi Bluetooth Operating System Onboard Storage RK3588 WiFi6 5.2 Android 12 25GB POWER Input Consumption (Typ) Consumption (Standby) Consumption (Sleep) Dynamic Backlight Control 100-240V~50/60Hz 81W 0.4W 2.6W Yes ENVIRONMENT Operating Temp. Operating Humidity Min: 0C, Max: +50C 10% RH - 80% RH CERTIFICATION & COMPLIANCE Safety UL, CSA, CE SIZING Bezel Width Thickness Weight Package Weight Package Dimensions .5" (13.5mm), 44 pixels .61" (15.5mm) 28.6lbs (13kg) 38.5lbs (17.5kg) 47x30x4" (1195x765x105mm) WxHxD

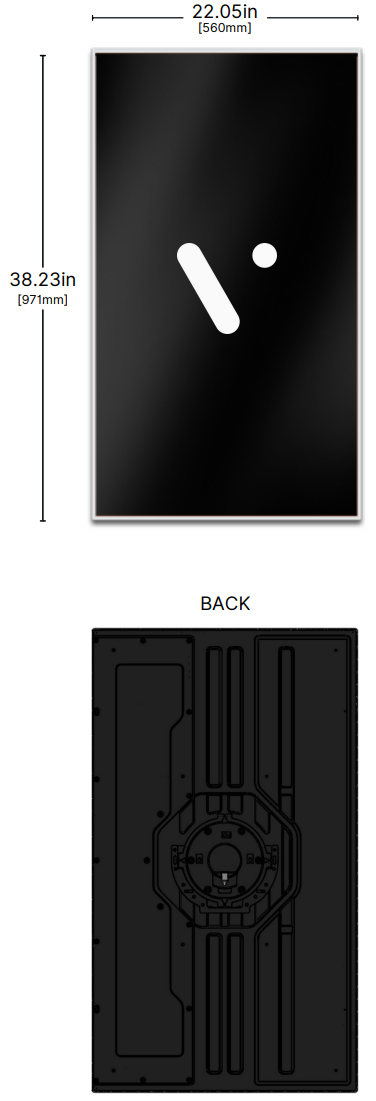

Spark4: 44"

At an impressive 44 inches and with 4K UHD, the Spark4 is a universal size large enough
to be high impact on its own, yet fits into most placements.

DISPLAY Active Display Area Resolution Brightness PPI Dark Mode Surface Treatment Color Gamut Dimming Type Operation Time Portrait/Tilt Compatibility 941.184 x 529.416mm 3840 x 2160 UHD 450 nits 104 0.56 nits 25% Haze 72% NTSC Remote only 24/7 Yes TECHNOLOGY Processor Wi-Fi Bluetooth Operating System Onboard Storage RK3588 WiFi6 5.2 Android 12 25GB POWER Input Consumption (Typ) Consumption (Standby) Consumption (Sleep) Dynamic Backlight Control 100-240V~50/60Hz 80W 0.8W 2.6W Yes ENVIRONMENT Operating Temp. Operating Humidity Min: 0C, Max: +50C 10% RH - 80% RH CERTIFICATION & COMPLIANCE Safety UL, CSA, CE SIZING Bezel Width Thickness Weight Package Weight Package Dimensions .5" (13.5mm), 50 pixels .61" (15.5mm) 20.94lbs (9.5kg) 32lb (14.45kg) 41.5x27x4" (1057x690x105mm) WxHxD

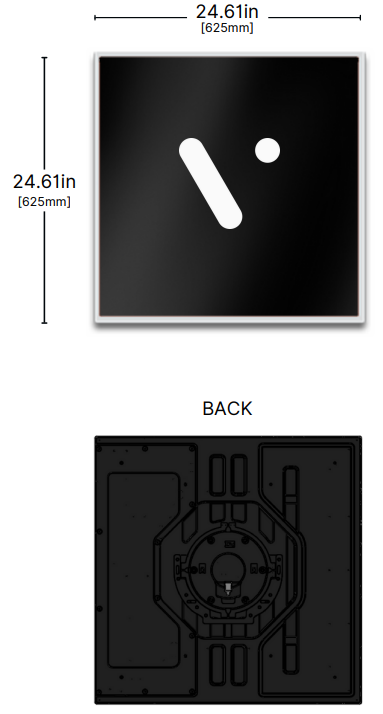

SparkQ+: 34"

A perfect square to add dimension and uniqueness to your layout. The SparkQ+, at 34
inches gives you digital flexibility and adds originality to any placement.

DISPLAY Active Display Area Resolution Brightness PPI Dark Mode Surface Treatment Color Gamut Dimming Type Operation Time Portrait/Tilt Compatibility 596.16 x 596.16mm 1920 x 1920 450 nits 82 0.56 nits 25% Haze 72% NTSC Remote only 24/7 Yes TECHNOLOGY Processor Wi-Fi Bluetooth Operating System Onboard Storage RK3588 WiFi6 5.2 Android 12 25GB POWER Input Consumption (Typ) Consumption (Standby) Consumption (Sleep) Dynamic Backlight Control 100-240V~50/60Hz 65W 0.8W 2.6W Yes ENVIRONMENT Operating Temp. Operating Humidity Min: 0C, Max: +50C 10% RH - 80% RH CERTIFICATION & COMPLIANCE Safety UL, CSA, CE SIZING Bezel Width Thickness Weight Package Dimensions .5" (13.5mm), 39 pixels .61" (15.5mm) 5.4lbs (7kg) 29x28x4" (750x710x100mm)WxHxD

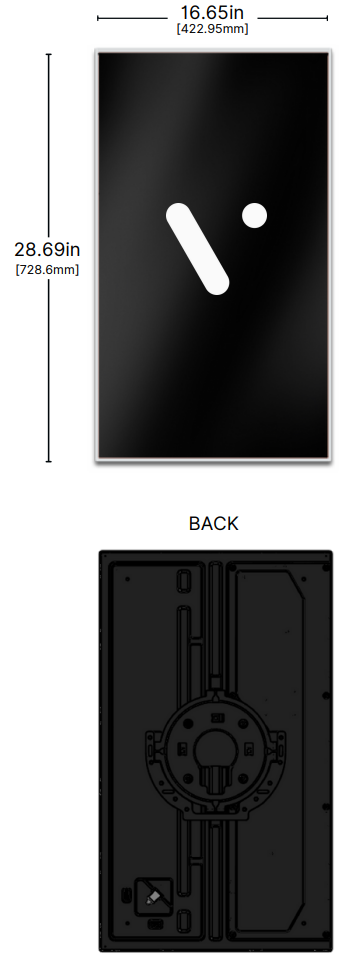

Spark3: 33"

The workhorse of any brand's digital footprint, the Videri Spark3 Digital Canvas is ideal for
smaller placements and is perfectly embedded into retail fixtures.

DISPLAY Active Display Area Resolution Brightness PPI Dark Mode Surface Treatment Color Gamut Dimming Type Operation Time Portrait/Tilt Compatibility 698.4 x 392.85mm 1920 x 1080 FHD 450 nits 70 0.56 nits 25% Haze 72% NTSC Remote only 24/7 Yes TECHNOLOGY Processor Wi-Fi Bluetooth Operating System Onboard Storage RK3588 WiFi6 5.2 Android 12 25GB POWER Input Consumption (Typ) Consumption (Standby) Consumption (Sleep) Dynamic Backlight Control 100-240V~50/60Hz 65W 1.0W 2.9W Yes ENVIRONMENT Operating Temp. Operating Humidity Min: 0C, Max: +50C 10% RH - 80% RH CERTIFICATION & COMPLIANCE Safety UL, CSA, CE SIZING Bezel Width Thickness Weight Package Weight Package Dimensions .5" (13.5mm), 33 pixels .61" (15.5mm) 12.1lbs (5.5kg) 16lb (7.15kg) 41.5x27x4" 32x21.25x4"(815x540x100mm) WxHxD

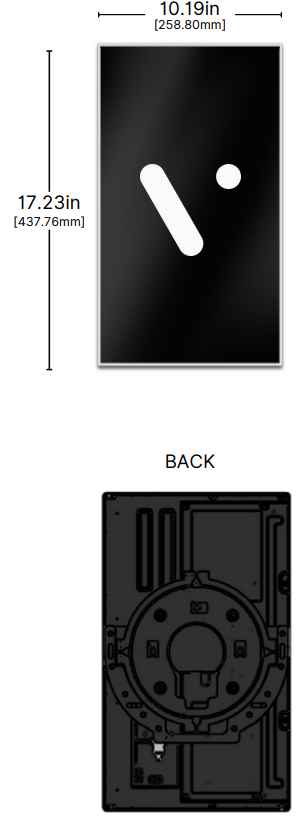

Spark2: 20"

Introducing the Videri 4G Spark2 Digital Canvas.
The only embedded 4G commercial display delivering even greater rapid deployment because of the built-in
network capability and centralized control. Ideal for brands at point of sale and retail where WiFi is
unavailable/unreliable.

DISPLAY Active Display Area Resolution Brightness PPI Dark Mode Surface Treatment Color Gamut Dimming Type Operation Time Portrait/Tilt Compatibility 408.96 x 230.04mm 1920 x 1080 FHD 450 nits 119 0.56 nits 25% Haze 72% NTSC Remote only 24/7 Yes TECHNOLOGY Processor Wi-Fi Bluetooth Operating System Onboard Storage RK3588 WiFi6 5.2 Android 12 25GB POWER Input Consumption (Typ) Consumption (Standby) Consumption (Sleep) Dynamic Backlight Control 100-240V~50/60Hz 40W 0.8W 2.6W Yes ENVIRONMENT Operating Temp. Operating Humidity Min: 0C, Max: +50C 10% RH - 80% RH CERTIFICATION & COMPLIANCE Safety UL, CSA, CE SIZING Bezel Width Thickness Weight Package Dimensions .5" (13.5mm), 55 pixels .61" (15.5mm) 4.9lbs (2.25kg) 21x16x4" (530x400x100mm) WxHxD

ACCESSORIES

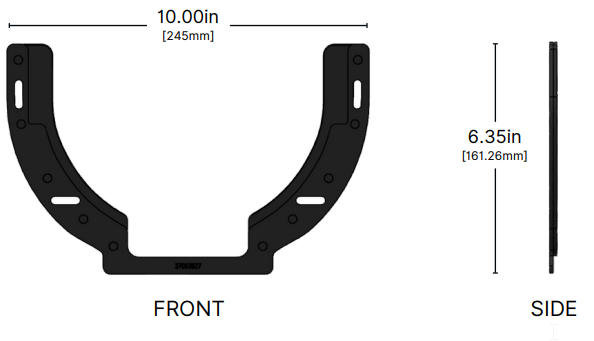

Horseshoe Mount - Thickness: 0.20in [5mm]

Power Adaptor

Length: 138.3 +/- 0.01 +/- 1.5mm
Width: 68.8 +/- 0.01 +/- 1.5mm
Height: 26 +/- 0.01 +/- 1.5mm

Power Cord

Length: 1500 +/- 50mm
16 AWG
