V Series: Canvas Specifications

  • Updated





Model VQ
Description Indoor Canvas August-14 15-42-42.pngAugust-14 15-42-52.png
DISPLAY
Active Display Area 475.8mm x 475.8mm [18.73in x 18.73in]
Resolution 1920 x 1920
Brightness 450 NITS
PPI 78
Surface Treatment 20% Haze
Color Gamut 92% NTSC
TECHNOLOGY
Processor DPC450 - 64GB onboard storage
WiFi 802.11 g/n/ac @ 2.4/5GHz
BlueTooth BT 4.0
NFC Yes (@13.56MHz)
Mech Outline 500 x 500 x 14mm
OS Android 6
POWER
Input 100-240 VAC
Consumption (typ) 52W
ENVIRONMENT
Operating Temp. 0C to 40C
Operating Humidity 0-90% RH (non-condensing)
CERTIFICATION & COMPLIANCE
Safety UL, CSA, CB
EMI/EMC FCC Class B, IC, CE
SIZING
Bezel Width 11.1mm (0.44in) 34 pixels
Thickness 14.0mm (0.55in))
Weight 4.4kg (9.8lbs)





Model V2

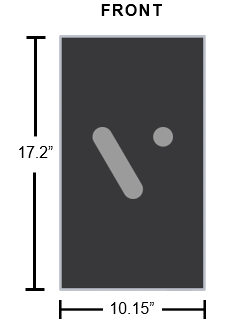

Description Indoor Canvas     August-14 15-41-39.pngAugust-14 15-41-47.png
DISPLAY
Active Display Area 230.04mm x 408.96mm
[9.06in x 16.10in]
Resolution 1920 x 1080
Brightness 450 NITS
PPI 110
Surface Treatment 5% Haze
Color Gamut 72% NTSC
TECHNOLOGY
Processor DPC430 - 16GB onboard storage
WiFi 802.11 g/n/ac @ 2.4/5GHz
BlueTooth BT 4.0
NFC Yes (@13.56MHz)
Mech Outline 437 x 258 x 16mm
OS Android 6
POWER
Input 100-240 VAC
Consumption (typ) 25W
ENVIRONMENT
Operating Temp. 0C to 40C
Operating Humidity 0-90% RH (non-condensing)
CERTIFICATION & COMPLIANCE
Safety UL, CSA, CB
EMI/EMC FCC Class B, IC, CE
SIZING
Bezel Width 13mm (0.51in), 55 pixels
Thickness 16mm (0.6in)
Weight 2.9kg (6.40lbs)





Model V3

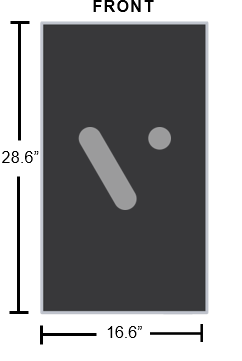

Description Indoor Canvas  August-14 16-59-24.pngAugust-14 16-59-36.png
DISPLAY
Active Display Area 392.9mm x 698.4mm, [15.7in x 27.50in]
Resolution 1920 x 1080
Brightness 450 NITS
PPI 66
Surface Treatment Normal glossy
Color Gamut 72% NTSC
TECHNOLOGY
Processor DPC430 - 16GB onboard storage
WiFi 802.11 g/n/ac @ 2.4/5GHz
BlueTooth BT 4.0
NFC Yes (@13.56MHz)
Mech Outline 726 x 421 x 13mm
OS Android 6
POWER
Input 100-240 VAC
Consumption (typ) 55W
ENVIRONMENT
Operating Temp. 0C to 40C
Operating Humidity 0-90% RH (non-condensing)
CERTIFICATION & COMPLIANCE
Safety UL, CSA, CB
EMI/EMC FCC Class B, IC, CE
SIZING
Bezel Width 11.5mm (0.45in) 30 pixels
Thickness 13.3mm (0.52in)
Weight 5.5kg (12lbs)





Model V4

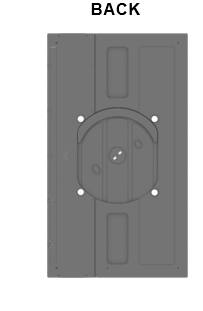

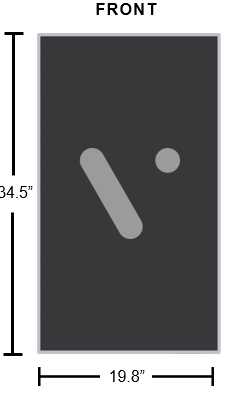

Description Indoor Canvas   August-14 17-00-31.pngAugust-14 17-00-49.png
DISPLAY
Active Display Area 480.33mm x 853.92mm, [18.91in x 33.62in]
Resolution 1920 x 1080
Brightness 450 NITS
PPI 100
Surface Treatment 5% Haze
Color Gamut 72% NTSC
TECHNOLOGY
Processor DPC430 - 16GB onboard storage
WiFi 802.11 g/n/ac @ 2.4/5GHz
BlueTooth BT 4.0
NFC Yes (@13.56MHz)
Mech Outline 877 x 503 x 13mm
OS Android 6
POWER
Input 100-240 VAC
Consumption (typ) 80W
ENVIRONMENT
Operating Temp. 0C to 40C
Operating Humidity 0-90% RH (non-condensing)
CERTIFICATION & COMPLIANCE
Safety UL, CSA, CB
EMI/EMC FCC Class B, IC, CE
SIZING
Bezel Width 9.2mm (0.36in), 36 pixels
Thickness 12.7mm (0.5in)
Weight 9.0kg (19.9lbs)





Model V5

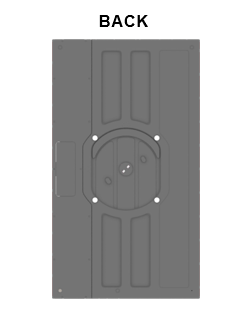

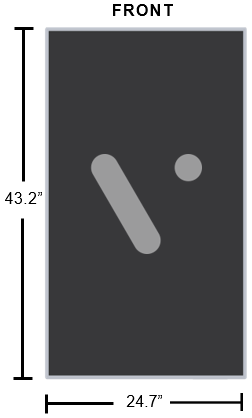

Description Indoor Canvas  August-14 17-02-05.pngAugust-14 17-02-13.png
DISPLAY
Active Display Area 604.0mm x 1073.78mm, [23.78in x 42.27in]
Resolution 1920 x 1080
Brightness 450 NITS
PPI 88
Surface Treatment 5% Haze
Color Gamut 72% NTSC
TECHNOLOGY
Processor DPC430 - 16GB onboard storage
WiFi 802.11 g/n/ac @ 2.4/5GHz
BlueTooth BT 4.0
NFC Yes (@13.56MHz)
Mech Outline 1097 x 627 x 13mm
OS Android 6
POWER
Input 100-240 VAC
Consumption (typ) 84W
ENVIRONMENT
Operating Temp. 0C to 40C
Operating Humidity 0-90% RH (non-condensing)
CERTIFICATION & COMPLIANCE
Safety UL, CSA, CB
EMI/EMC FCC Class B, IC, CE
SIZING
Bezel Width 9.2mm (0.36in), 32 pixels
Thickness 12.7mm (0.5in)
Weight 11.1kg (24.5lbs)
