Device Statuses

Default Display

When you open the Devices Page, the 'Statuses' column is shown by default. To hide it, open the Column Configurator (see The Devices Page for more details).

Each device can display up to six statuses at a time. By default, the following five statuses are shown:

1. Online Status

2. Display Status

3. Device Type

4. Orientation

5. Max Resolution

Customizing the 'Statuses' Column

You can customize which statuses appear in the 'Statuses' column to better fit your needs. To configure the 'Statuses' column:

1. Click "Devices" in the left sidebar to see your list of devices.

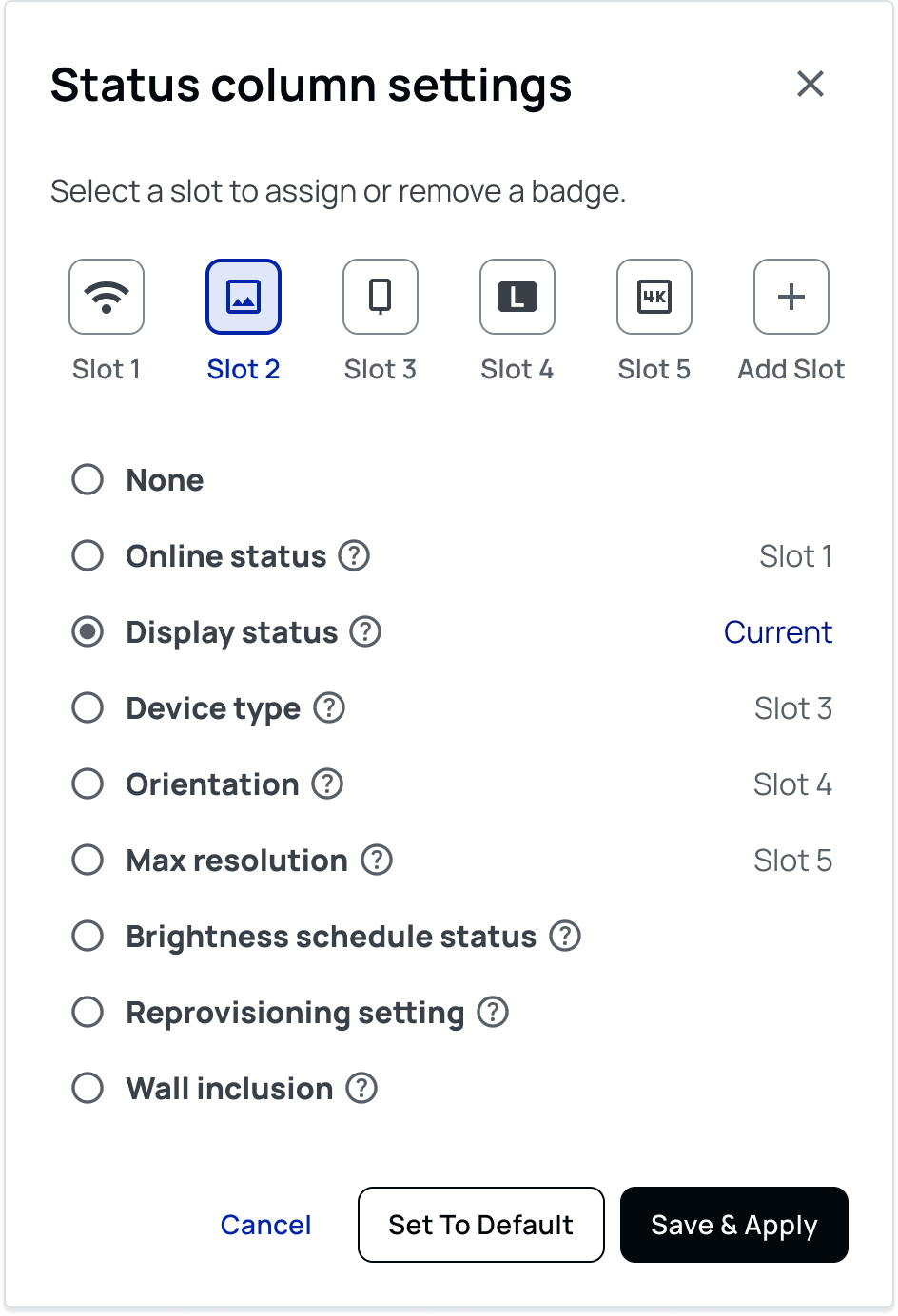

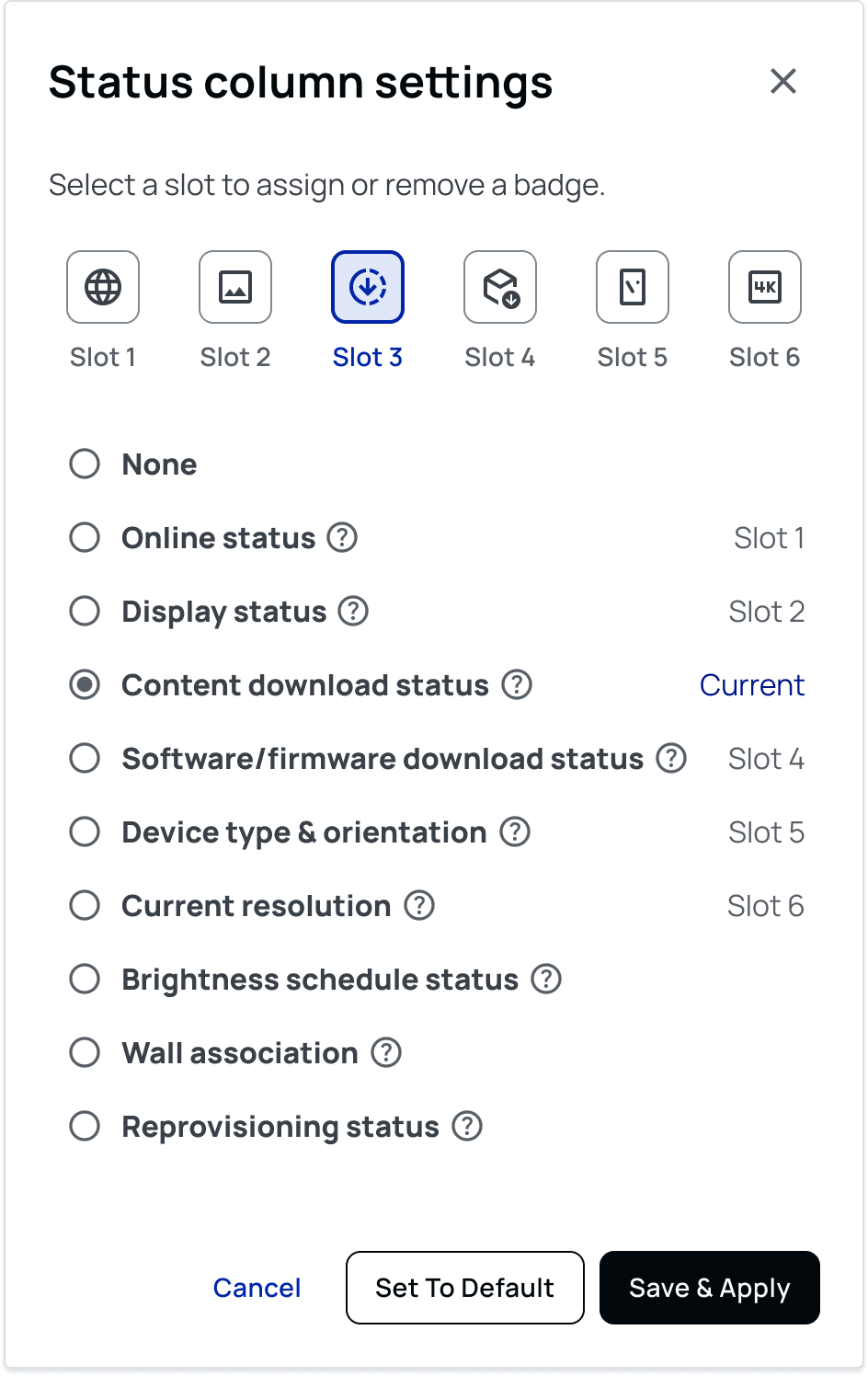

2. Click the icon next to the 'Statuses' header. This will open the "Status Column Settings" modal.

   NOTE: The "Status Column Settings" modal will display slot assignments and options. Each slot represents one status. The order of the slots determines the order the statuses will appear in the 'Statuses' column. Assigned statuses are displayed as icons in their respective slots.

3. Click on any slot to select it.

   NOTE: The currently selected slot will be highlighted blue and the word "Current" will appear next to the assigned status.

4. Modify slot assignment as needed:

   1. To change a status, select a new one from the list.

   2. To remove a status, select "None".

      NOTE: For more information about applicable statuses, see Types of Device Statuses below. You can also hover over the (?) icon next to each status during configuration.

5. Click "Save & Apply" once you've made all necessary changes.

Types of Device Statuses

There are a total of 8 device statuses:

Name	Description	Applicable Values
Online status	Reports whether the device is online or offline.

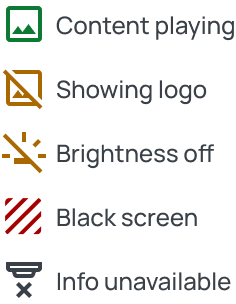

Display status	Reports the current display status of the device. For more information about display status, see Display Statuses For Devices In Portal3.

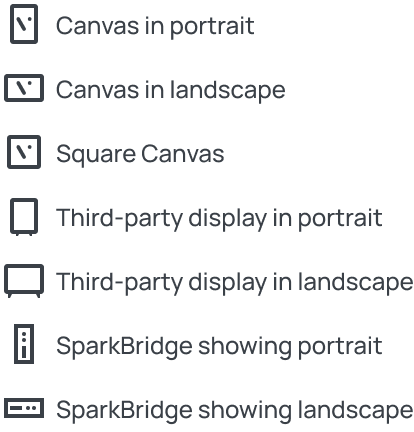

Device type	Reports the type of device.
Orientation	Reports the orientation of the device.

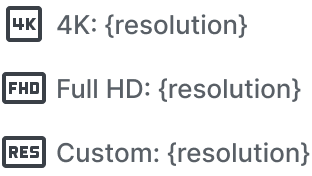

Max resolution	Reports the max resolution of the device.

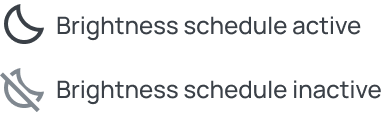

Brightness schedule status	Reports whether the device has any active brightness schedules.
Reprovisioning setting	Reports whether reprovisioning is enabled or disabled on the device.
Wall inclusion	Reports whether the device is part of a Wall or not.
